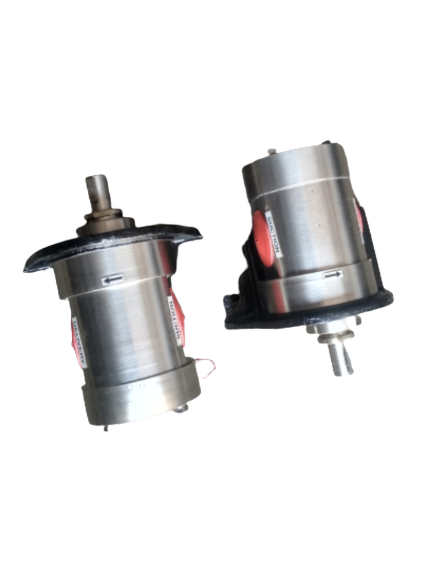

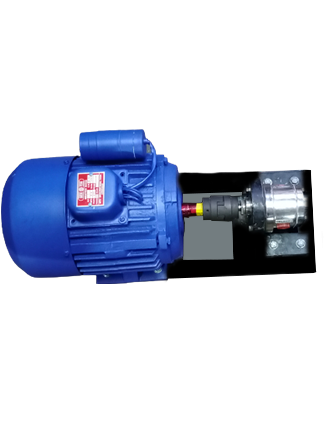

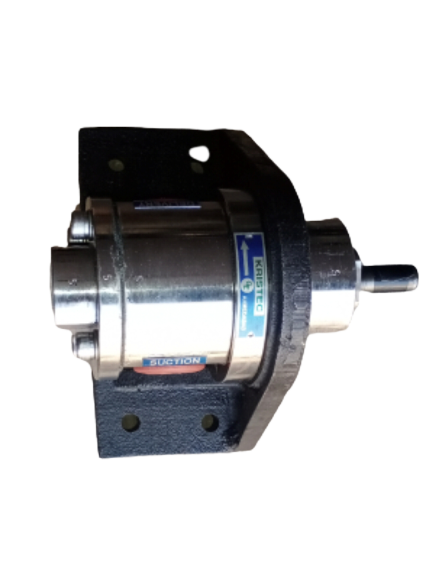

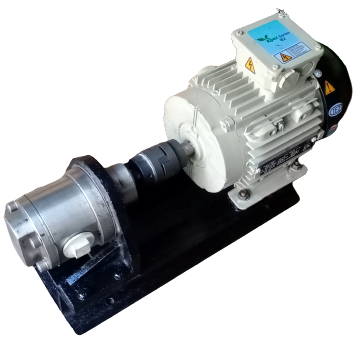

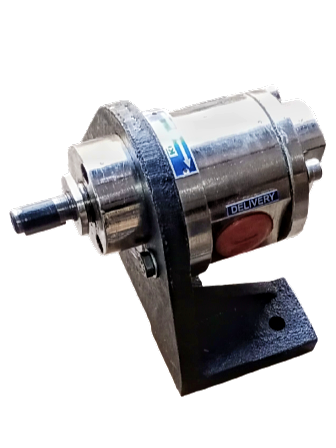

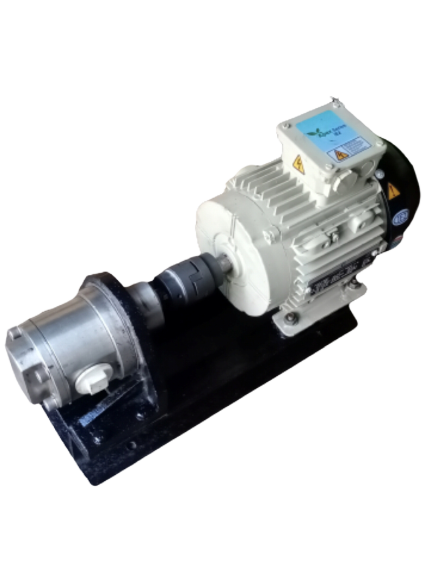

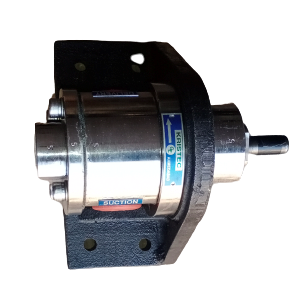

    SS Rotary Gear Pump

    GELASHA ENGINEERS IS COUNTED AMONG THE LEADING STAINLESS STEEL ROTARY GEAR PUMP MANUFACTURERS IN AHMEDABAD, WE OFFER SUPERSTRY QUALITY KRISTEC BRAND STAINLESS STEEL ROTARY GEAR PUMP, USED IN THE RELIABLE INDUSTRIAL FIELD, KNOWN FOR ITS RELIABLE OPERATION AND INTERNATIONAL STANDARDS. OUR ROTARY GEAR PUMPS ARE USEFUL FOR TRANSPORTING ALL LIQUIDS, OILS, PETROLEUM, CHEMICAL AND COSMETIC PRODUCTS. IT CAN WORK VERY EASILY AND IS WIDELY USED IN THE INDUSTRIAL SECTOR. WE MANUFACTURE THE BEST GEAR PUMPS IN INDIA.

    WE MANUFACTURE STAINLESS STEEL ROTARY GEAR PUMP,DOUBLE HELICAL GEAR PUMP AND SPUR GEAR PUMP IN AHMEDABAD.

    GELASHA ENGINEERS HAS A VERY STRONG TALENT AS A TECHNICAL TEAM, WITH RICH AND VARIED EXPERIENCE IN PUMP MANUFACTURING.
    WE ARE COUNTED AMONG THE BEST MANUFACTURERS AND SUPPLIERS OF A WIDE RANGE OF MOST INDUSTRIAL PUMPS.

    MODEL KRGPSS

    TECHNICAL SPECIFICATION:

    MODEL SUCTION & DELIVERY BSP LPM US GPM M³/HR
    KRGPSS-040 3/8" X 3/8" 16 4.5 1
    KRGPSS-050 1/2" X 1/2" 25.00 6.5 1.50
    KRGPSS-075 3/4" X 3/4" 33 8.5 2.00
    KRGPSS-100 1" X 1" 50.00 13.5 3.00
    KRGPSS-150 1 ½" X 1 ½" 125.0 33.0 7.50
    KRGPSS-200 2" X 2" 200.0 52 12.00
    KRGPSS-250 2 ½" X 2 ½" 300.0 80.0 18.00



    GEAR OIL PUMP MATERIAL OF CONSTRUCTION:

    PART MOC
    PUMP BODY CF8M - S.S.316
    FRONT COVER COVER CF8M - S.S.316
    BACK COVER COVER CF8M - S.S.316
    GLAND COVER CF8M - S.S.316
    R.H. & L.H. AISI - S.S.316
    ROTOR / SHAFT AISI - S.S.316
    BUSH BEARING TEFLON AND P.B BUSH & BEARING
    MOUNTING BRACKET C.I.GR.
    DOM NUT AISI - S.S.316
    SEALING "Z" PACK TEFLON
    PACKING TEFLON SHEET
    KEY FOR COUPLING AISI - S.S.316



    APPLICATION

    • 1. FOOD PRODUCT LIKE GHEE, BUTTER, PULP, VEGETABLE SAUCE.
    • 2. PHARMACEUTICAL INDUSTRIES.
    • 3. COSMETIC INDUSTRIES.
    • 4. DYES AND RESINS.
    • 5. CHEMICAL INDUSTRIES FOR CORROSIVE VISCOSE CHEMICAL.
    • 6. DYEING AND PRINTING HOUSE.
    • 7. SPECIAL CHEMICAL AND ACID INDUSTRIES.
    • 8. LIQUID FILLING MACHINE.
