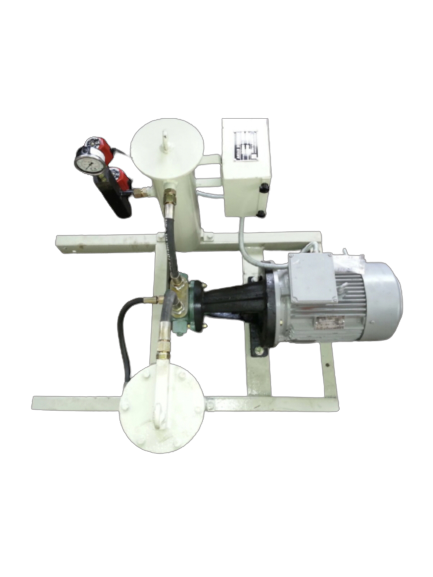

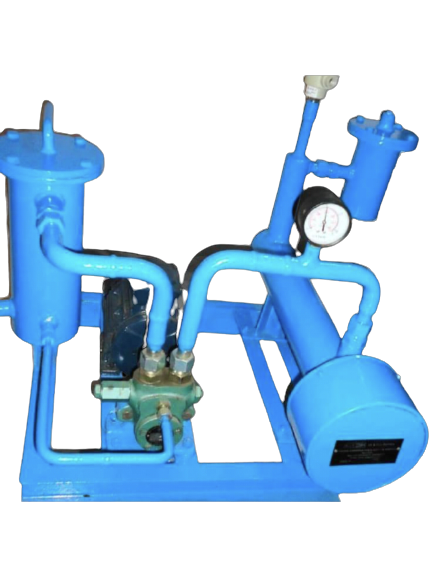

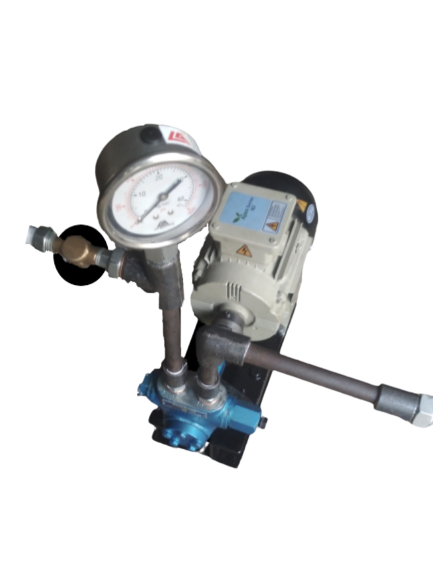

GELASHA ENGINEERS, ONE OF THE LEADING FUEL INJECTION GEAR PUMP MANUFACTURERS IN AHMEDABAD, WHICH MANUFACTURES KRISTEC BRAND PUMPS, WE OFFER SUPPORT QUALITY. ALL BOILERS AND OIL BURNERS USED IN THE INDUSTRIAL SECTOR ARE KNOWN FOR RELIABLE OPERATION AND INTERNATIONAL STANDARDS. FOR OUR BUYERS OUR PUMP BOILER AND OIL BURNER FUEL DIESEL PUMP FORCE RUN OUR FUEL INJECTION GEAR PUMP FOR TRANSFER AND FILTRATION FROM FORCE LUBRICATION, FUEL OIL AND HYDRAULIC OIL PRESSURE, WE PRODUCE THE BEST FUEL PUMP IN INDIA. SUITABLE FUEL FOR OUR FUEL INJECTION GEAR PUMP OIL LDO.FO.KEROSENE.HSD AND LSHS

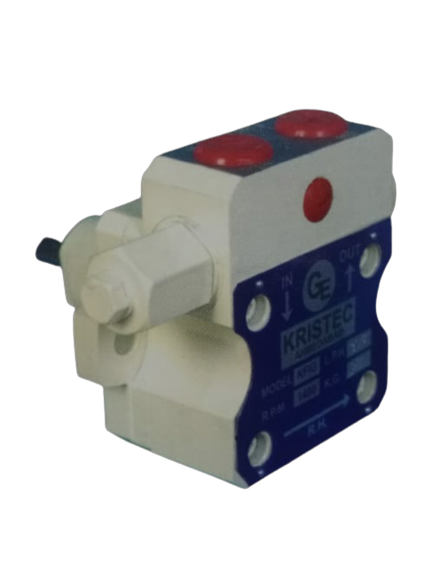

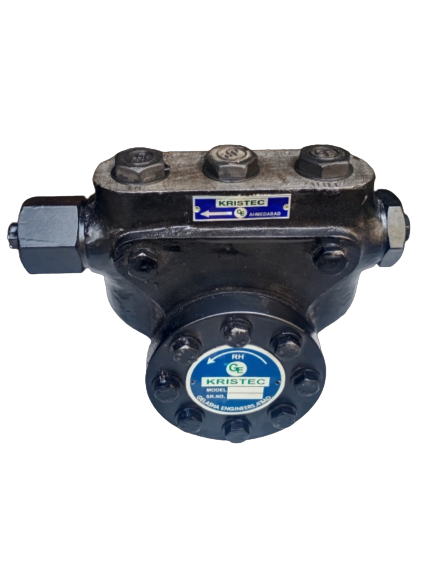

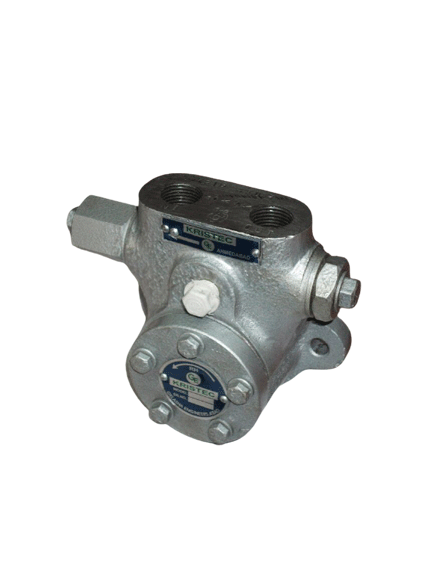

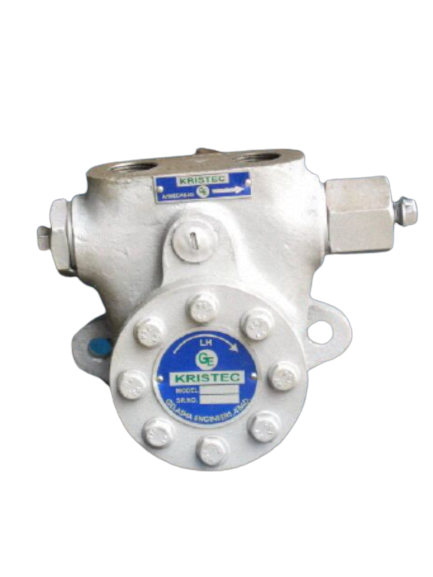

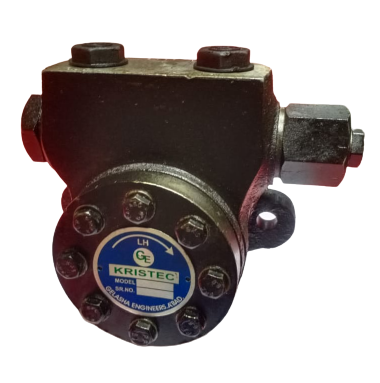

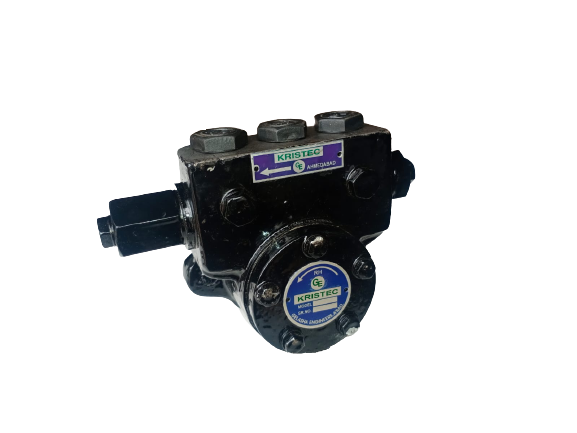

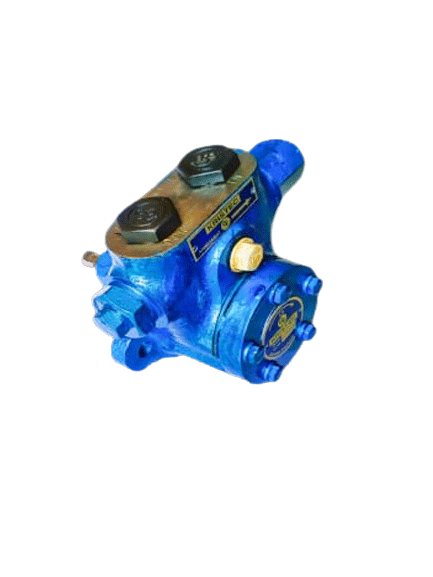

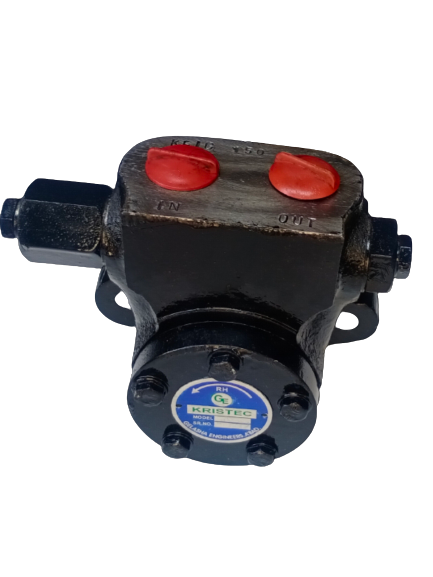

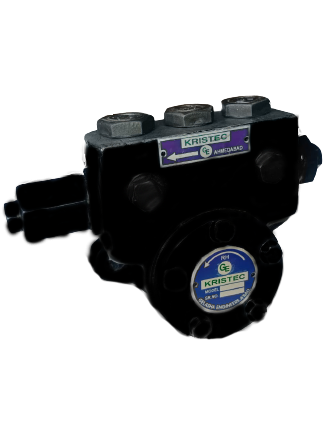

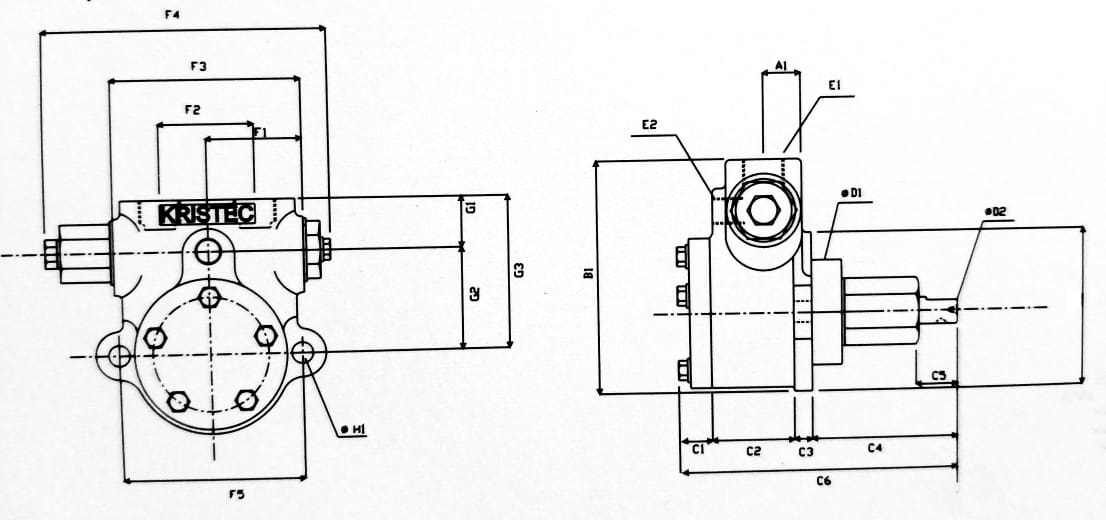

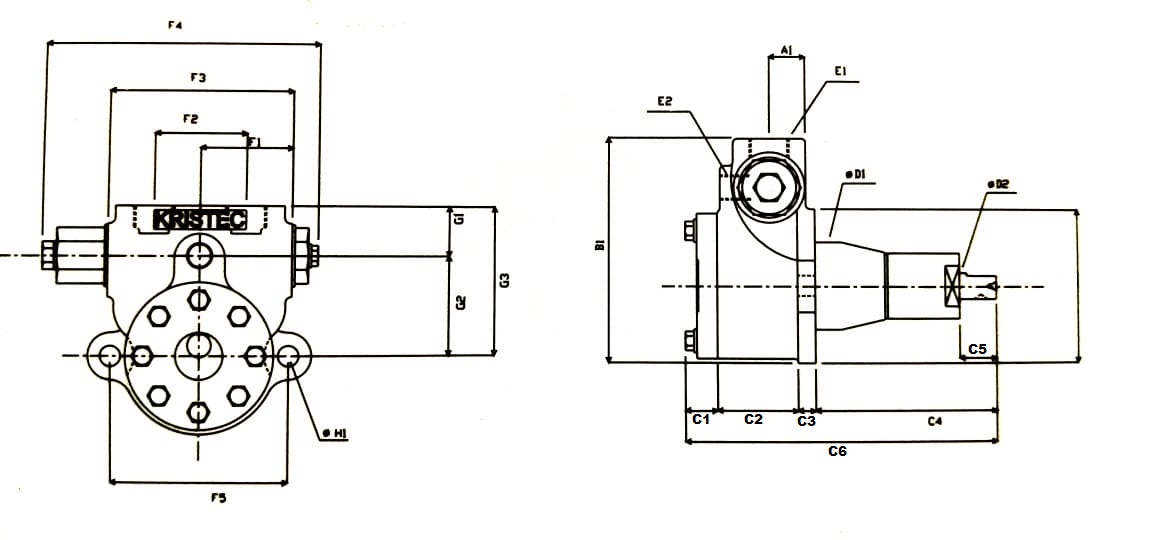

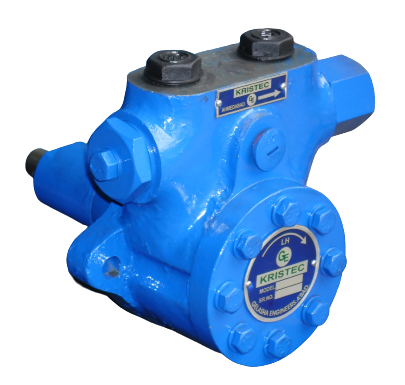

MODEL KFIG / KFIG[I] / KFIG[T] / KFIG[S]

APPLICATIONS

• 1. BOILERS, OIL BURNER HYDRAULIC DRIVE.
• 2. PRESSURE AND TRANSFER PUMP.
• 3. BOOSTER PUMP FOR DIESEL LOCOMOTIVE.
• 4. PUMP FOR FORCE FEED LUBRICATION.
• 5. PUMP FOR LUBRICATION OIL AND HYDRAULIC OIL.
• 6. PUMP FOR FILTRATION.
• 7. PUMP SUITABLE FOR LDO, FO, HSD & LSHS.

SALIENT FEATURES

• 1. MANUFACTURED FROM SPECIALLY SELECTED MATERIALS AND PROCESSED TO CLOSE TOLERANCES FOR A LONG, TROUBLE FREE WORKING LIFE.
• 2. BODY AND COVER MADE OF CLOSE GRADED, GRADED CAST IRON.
• 3. GEAR AND SHAFT ALLOY STEEL.
• 4. MECHANICAL DYNAMIC SEAL FOR HIGH TEMPERATURE & HIGH SPEED USE.
• 5. BRONZE BUSH FOR LOW FRICTION AND LONG LIFE.
• 6. STATIC 'O' RING SEALING FOR ZERO LEAKAGE.
• 7. SELF PRIMING.
• 8. BUILT IN PRESSURE REGULATOR.
• 9. STANDARD MOUNTING DIMENSIONS EASY REPLACEMENT.

HYDRAULIC DATA

• 1. NORMAL FLOW AT 1440 R.P.M. OR 2880 R.P.M. WITH OIL VISCOSITY 32CST AT 37.5°C AT NORMAL WORKING TEMPERATURE AND10 KG/CM PRESSURE.
• 2. MIN. VISCOSITY 10 CST.
• 3. MAX. VISCOSITY 450CST.
• 4. MAX. LIQUID TEMPERATURE 200°C.
• 5. MAX. VACUUM 600/650 MM HGCAPACITY/RANGE.
• 6. 40/2500 LPH. MAX. HEAD OF 30 KG/CM'.THE PRESSURE AND FLOW INDICATIONS ARE TO BE CONSIDERED AS BASIC VALUE. THEY CHANGE WITH DIFFERENT PIPE DIAMETER, LENGTH OR OIL VISCOSITY.

DESIGN FEATURE

• 1. POSITIVE DISPLACEMENT.
• 2. INTERNAL LUBRICATION SYSTEM.
• 3. AVAILABLE WITH OR WITHOUT BUILT-IN PRESSURE RELIEF VALVE &EXTERNAL BY PASS.
• 4. MECH. SHAFT SEAL PREVENTING LEAKAGE OF LIQUIDS .
• 5. SELF INDUCING.
• 6. DIRECTION OF ROTATION R= CLOCKWISE L = ANTICLOCKWISELOCKING FROM SHAFT END.

DESIGN AND TECHNICAL DATA -SHEET:

APPLICATION AND REQUIREMENT DATA:

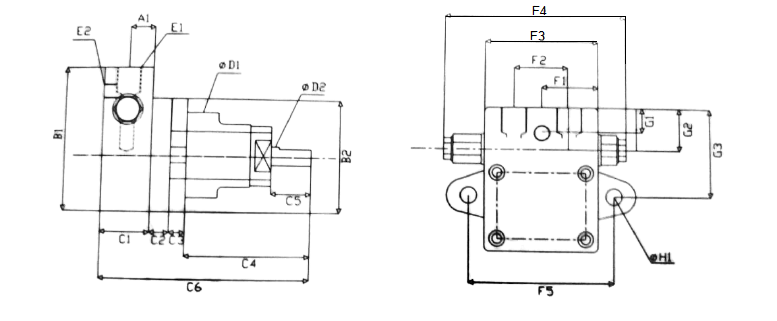

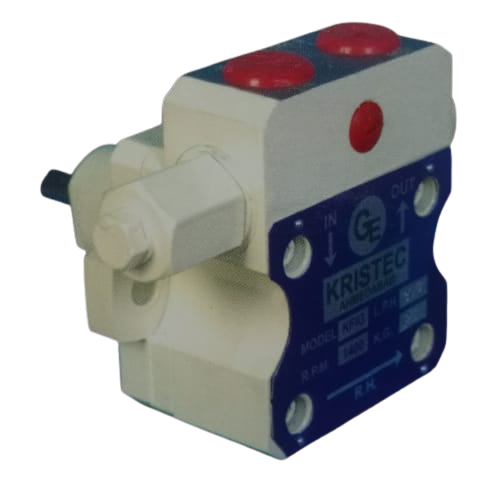

MODEL KFIG[S]

APPLICATION AND REQUIREMENT DATA:
