    Rotary Gear Pump

    GELASHA ENGINEERS IS COUNTED AMONG THE LEADING ROTARY GEAR PUMP MANUFACTURERS IN AHMEDABAD, WE OFFER SUPERSTRY QUALITY ROTARY GEAR PUMPS, USED IN THE INDIAN INDUSTRIAL SECTOR, KNOWN FOR ITS RELIABLE PERFORMANCE AND INTERNATIONAL STANDARDS.

    OUR ROTARY GEAR PUMPS ARE USEFUL FOR PUMPING AND TRANSFERRING ALL VISCOUS LIQUIDS, OILS, PETROLEUM, AND CHEMICAL PRODUCTS. THEY CAN WORK VERY EASILY AND ARE WIDELY USED IN THE INDUSTRIAL SECTOR. WE MANUFACTURE THE BEST GEAR PUMPS IN INDIA.

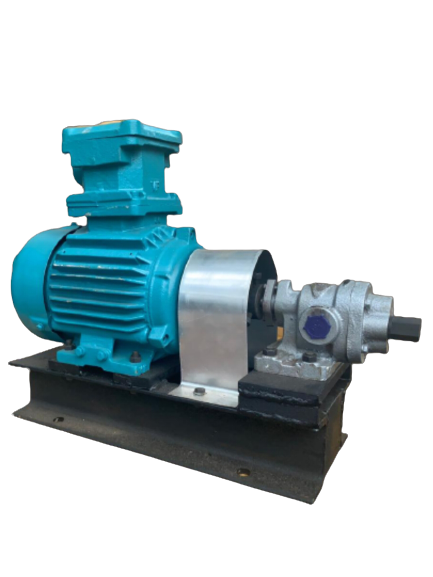

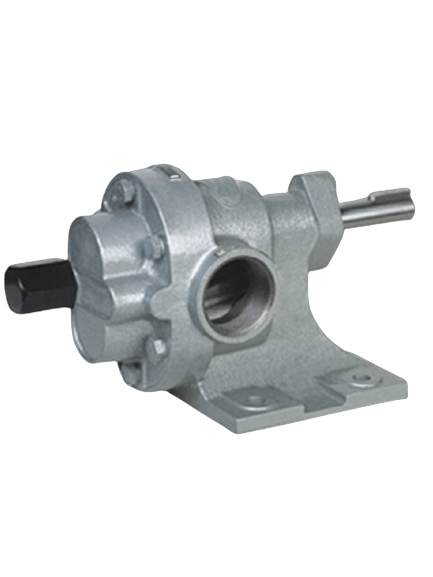

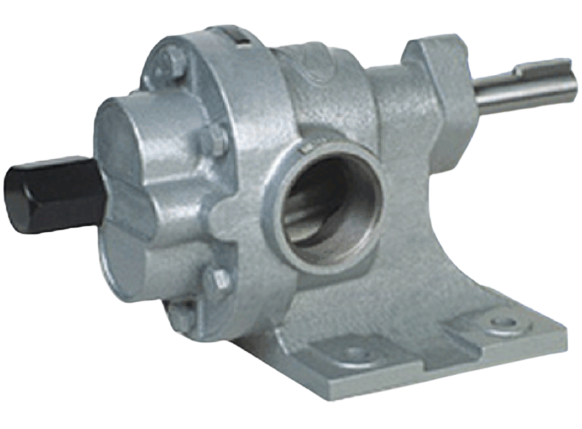

    PUMP MODEL:KRGFP

    TECHNICAL SPECIFICATION:

    • POWER SOURCE : ELECTRIC
    • FLOW RATE : 5 LPM TO 325 LPM
    • MODEL NAME/NUMBER : KRGFP
    • PRESSURE RANGE : PSI 10 BAR
    • BRAND : KRISTEC PUMPS
    • COUNTRY OF ORIGIN : MADE IN INDIA



    MATERIAL OF CONSTRUCTION:

    PART MOC
    PUMP BODY IS 210 GR FG280 CI GRADE
    SHAFTS SAE 8620
    GEARS EN-8
    SEALING OIL SEALNEITRIDED & WITONE
    BEARING BRONZE BUSH BEARING
    PLUG CAPS ALUMINIUM



    TECHNICAL SPECIFICATION:

    MODEL INLET OUTLET SIZE BSP LPM US GPM M³/HR
    KRGP-050 ½" X ½" 20 5.3 1.2
    KRGP-075 ¾" X ¾" 30 7.92 1.8
    KRGP-100 1" X 1" 50 13.5 3.0
    KRGP-150 1½" X 1½" 110 29 6.6
    KRGP-200 2" X 2" 225 59.4 13.5
    KRGP-250 2½" X 2½" 350 92.5 21

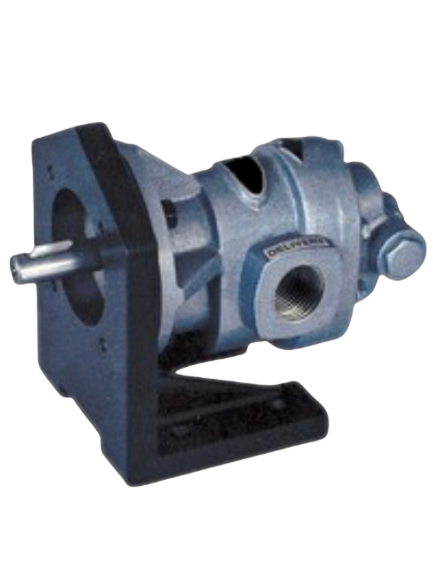

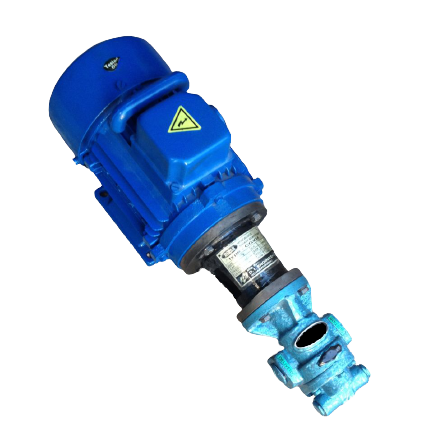

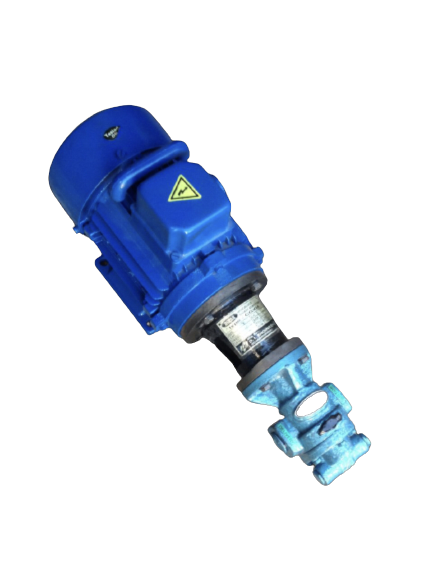

    PUMP MODEL - KRGHFP (ROTARY GEAR HUB &FLANGE MOUNTING PUMP)



    GELASHA ENGINEERS IS A MANUFACTURER OF HUB TIPE FLANGE MOUNTING ROTARY GEAR PUMPS UNDER THE BRAND NAME OF "KRISTEC PUMPS" SERIES "KRGHFP" - IS A SINGLE HELICAL GEAR WITH SELF-PIECE CAST IRON CONSTRUCTION AND IS FITTED TO THE RIGIDITY. SUPPORTED WITH BRONZE BUSH.



    MATERIAL OF CONSTRUCTION:

    PART MATERIAL FOR STANDARD MATERIAL FOR H.T.
    PUMP BODY IS.210 FG 220 C.I. GRADE IS.210 FG 220 C.I. GRADE
    BACK COVER IS.210 FG 220 C.I. GRADE IS.210 FG 220 C.I. GRADE
    R.H. & L.H. GEAR EN-8 EN-24 [H. NITRATED]
    ROTOR/STATOR SHAFT EN-19 EN-19
    BEARING[BUSHES] NON FERROUS SINTERED BRONZE NON FERROUS SINTERED BRONZE
    SEALING NEITRIDED OIL SEAL "GFO" PACK TEFLON
    R.V. CAP ALUMINIUM ALUMINIUM
    KEY FOR COUPLING EN-8 EN-8



    TECHNICAL SPECIFICATION:

    MODEL SUCTION & DELIVERY SIZE LPM US GPM M³/HR
    KRGHFP-050 ½" X ½" 10.00 2.652 0.6
    KRGHFP-050 ½" X ½" 15.00 4.00 0.9
    KRGHFP-075 3/4" X 3/4" 20.00 5.30 1.2
    KRGHFP-075 3/4" X 3/4" 25.00 6.60 1.5
    KRGHFP-100 1" X 1" 35.00 9.25 2.1
    KRGHFP-100 1" X 1" 50.00 13.20 3.0
    KRGHFP-150 1½" X 1½" 110.00 29.00 6.6
    KRGHFP-200 2" X 2" 225.00 59.40 13.5



    APPLICATION:

    • 1. OIL FILTRATION SYSTEMS.
    • 2. PUMPING AND HEATING SYSTEMS.
    • 3. CLEANING AND COOLING SYSTEMS.
    • 4. CENTRALIZE LUBRICATION SYSTEMS.
    • 5. PETROLEUM INDUSTRIES.
    • 6. MACHINE TOOLS INDUSTRIES.

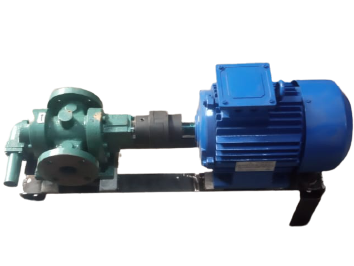

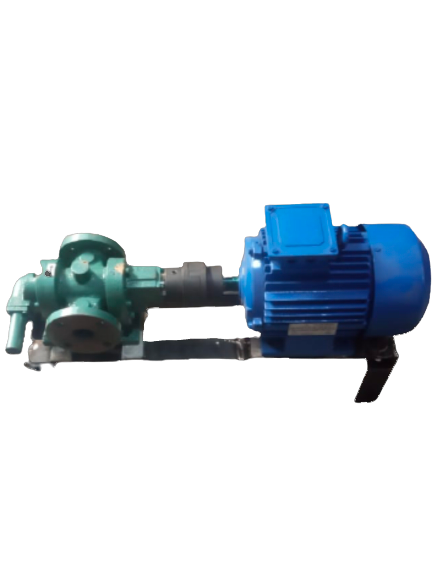

    PUMP MODEL - KRGBFFP (BITUMEN & BOILER PUMP)



    GELASHA ENGINEERS IS MANUFACTURER OF SPECIAL PURPOSE BOILER PUMP UNDER THE BRAND NAME OF "KRISTEC PUMPS" SERIES KRGFFP. FOR ASPHALT INDUSTRIES , BITUMEN TANK LOAD UNLOAD , BITUMEN SPRAYER ETC.
    THIS PUMPS HAVING A GRADED CAST IRON BODY AND COVER , HELICAL PROFILE MODULE GEAR , HARDENED & GROUND SHAFT.
    DRDX PUMP IS FOOT MOUNTING AND FLANGE MOUNTING PUMP.



    MATERIAL OF CONSTRUCTION:

    PART MATERIAL FOR STANDARD
    PUMP BODY IS.210 FG 220 C.I. GRADE
    BACK COVER IS.210 FG 220 C.I. GRADE
    R.H. & L.H. GEAR EN-8
    ROTOR/STATOR SHAFT EN-19
    BEARING[BUSHES] NON FERROUS SINTERED BRONZE
    SEALING "GFO" PACK TEFLON
    R.V. CAP ALUMINIUM
    KEY FOR COUPLING EN-8
